VIBROTEST 60

PORTABLE VIBRATION ANALYZERS & FIELD BALANCERS

Learn more at SCHENCK Handhelds Solutions for Field Balancing and Vibration Analysis!

*For our newest generation of portable instruments, please see SVA 90 and SVA 95 VibroAnalyzers.

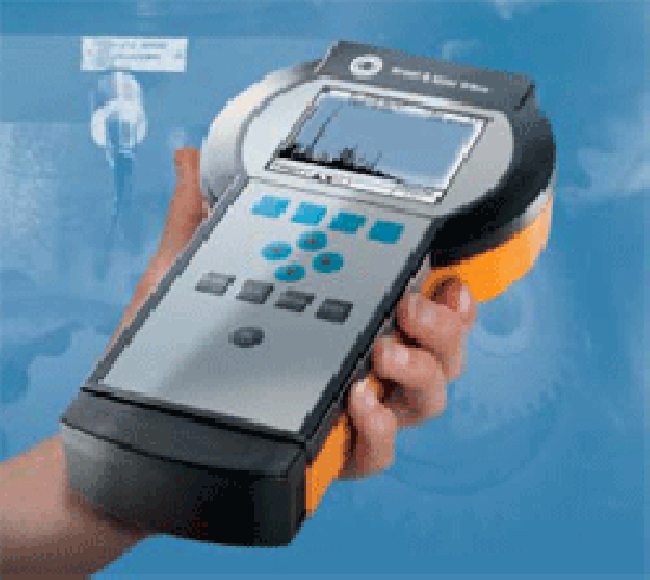

The VIBROTEST 60 is a state-or-the-art hand-held unit that offers a wide range of capabilities to effectively diagnose, troubleshoot and correct machine vibration in the field.

This modular system can be used as a:

  • Vibration Analyzer
  • Field balancer
  • Data collector

...or combine all three modules with XMS Software for complete predictive maintenance capability!

The *VIBROTEST 60 has an advanced Digital Signal Processor (DSP) that provides fast, accurate measuring results with a brilliant, high resolution screen. Two channels, plus one speed/ reference channel, can simultaneously process up to 5 machine parameters such as overall mechanical vibration, bearing condition values, frequency spectrum and speed, in one measurement - on one screen.

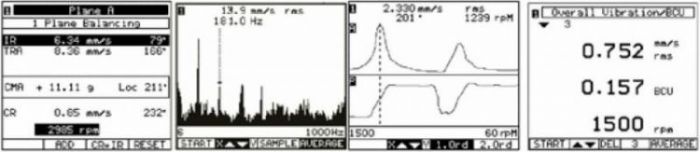

Overview of modules (seen below)
Module 1.1: Basic Module Overall values for Machine Evaluation

  • Absolute bearing vibrations
  • Relative shaft vibrations
  • Bearing Condition Unit (BCU)
  • Bandpass measurements
  • Process values
  • Speed measurement
  • Manual entry

Module 1.2: Extension Module

  • Overall Vibration vs. Speed
  • Overall Vibration vs. Time

Module 2.1: Basic Module for Machine Diagnosis

  • FFT-spectrum for analysis of machine faults and damage

Module 2.2: Extension Module for Machine Diagnosis

  • Envelope analysis BSC/SED-spectrum for extended identification of bearing damage
  • Cepstrum for selective gear analysis

Module 3: Tracking Analysis

  • Narrow-band measurement of rotor-synchronous vibrations
  • Amplitude / Phase vs. Speed
  • Amplitude / Phase vs. Time

Module 5: Dual-channel Function

  • Extension for simultaneous acquisition and evaluation of all measurements for condition-oriented machine maintenance

Module 6: Data-collector

  • For systematic acquisition and evaluation of all measurements types for predictive machine maintenance

Module 7: BALANCING EXPERT Field Balancing (Dual-channel)

  • For field balancing of rotors in one and two correction planes

Module 8: CPB-spectrum

  • For efficient fault detection through formation of multiband-pass filters in the frequency range of measurement.
