Basis for balancing conventional turbocharger components and permanently magnetised rotors

  • Bode and Nyquist plots including real time display during run-up
  • Processing of different reference marks by the reference sensor using laser technology
  • CAB 920 measuring unit: precise, reliable, high-end
  • High measuring accuracy and efficiency
  • Two plane balancing
  • Safety enclosure type C60 in accordance with ISO 7475
  • Safe and simple handling
Range of application

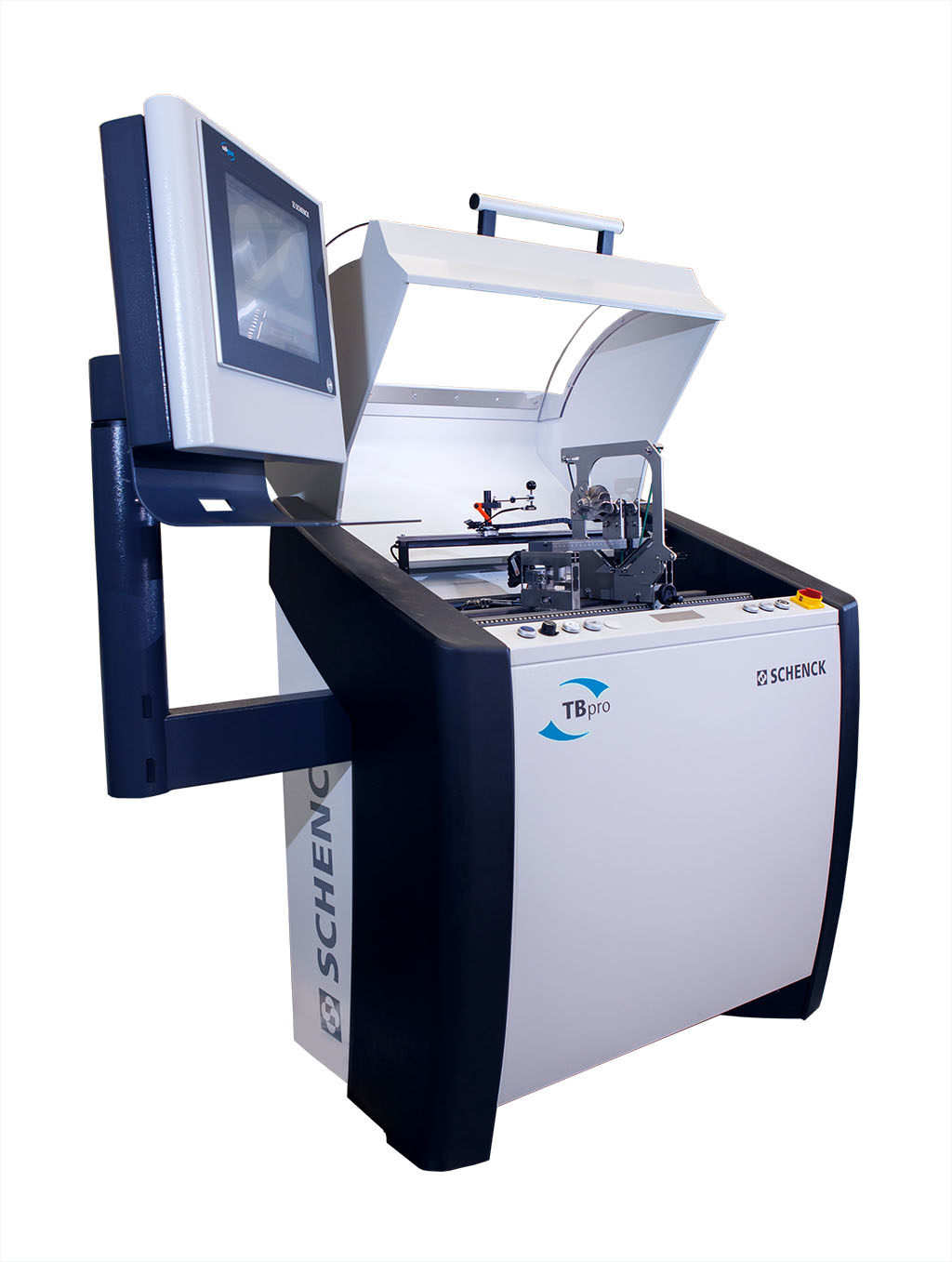

The balancing machine TBpro is ideally suited to conventional turbocharger components and permanently magnetised rotors. They are conceived for use in research and development, prototype shops and in small batch production.

Change-over to new rotor types is straightforward and only requires a minimum of time.

Unbalance correction is made manually by removal of material (e.g. by grinding or milling) outside of the machine.


• Hard-bearing, horizontal balancing machine with permanent calibration for standing or seated operator

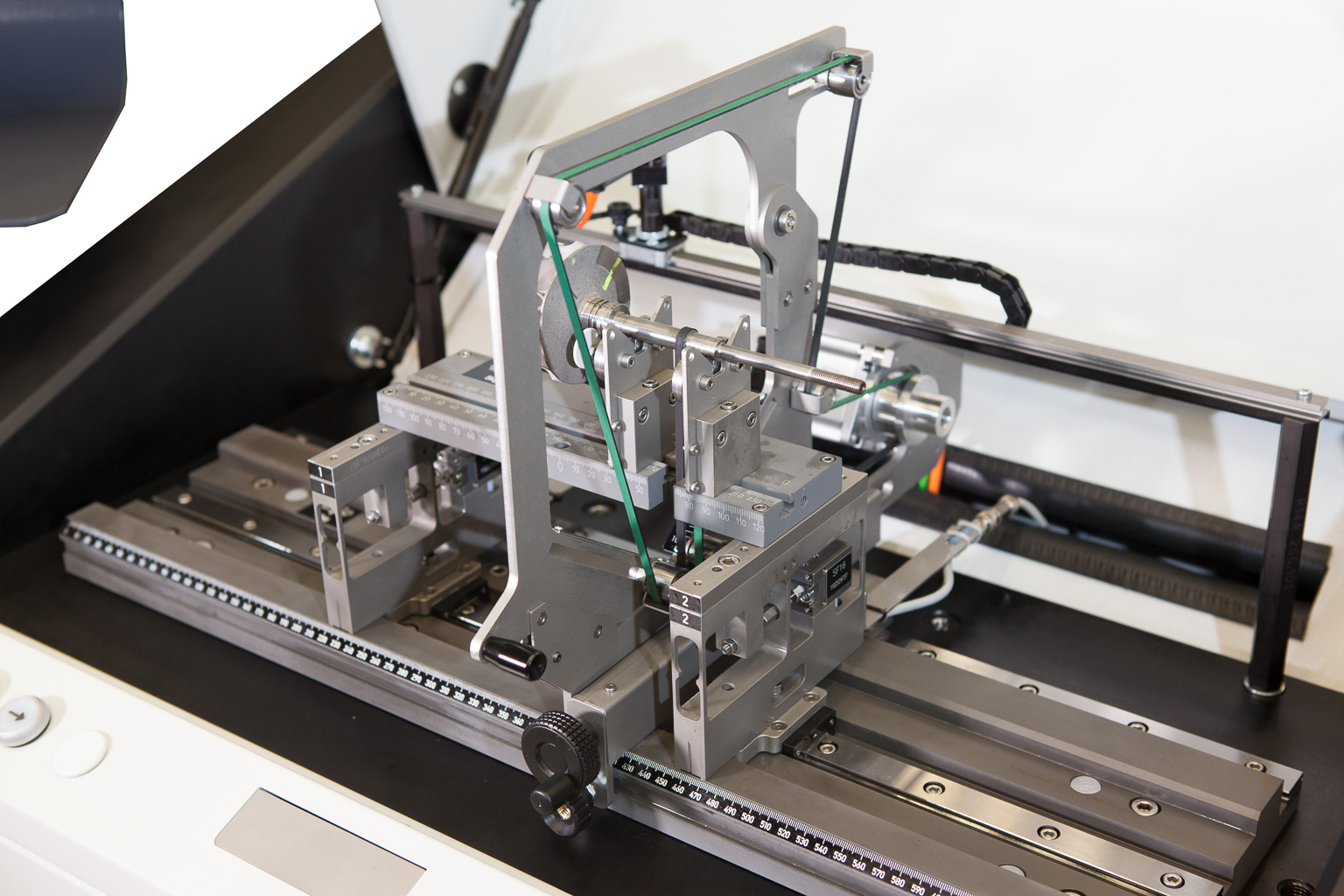

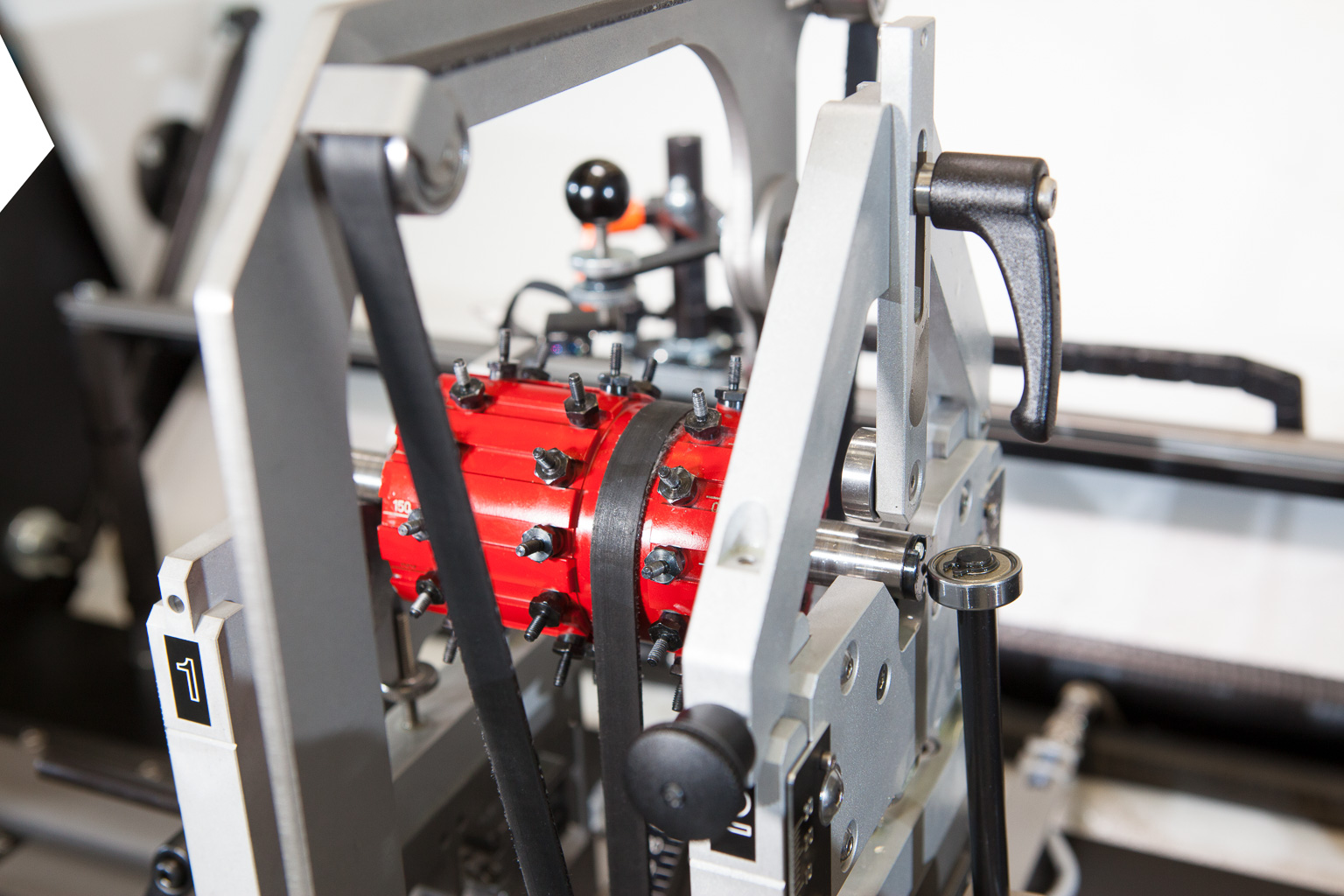

• The complete workplace consists of the following major components: machine table, mechanical balancing unit comprising roller bearings or V-blocks, belt drive, measuring instrument and control system
• The machine can be installed without foundations and without bolts and is immediately ready for operation
• Measuring unit CAB 920 with graphics-capable color display

Advantages at a glance
  • Highest degree of measurement accuracy
  • Easy operation thanks to intuitive menu guide
  • Extensive evaluation, export and analysis options
  • Highest safety standards as per CE
  • Compact monoblock machine made of mineral casting
  • Broad range of applications (passenger car, truck, marine)
  • Considerable economic efficiency (quick change over to small batch sizes)
  • Fast and precise determination of the unbalance
Technical data
Data at a glance

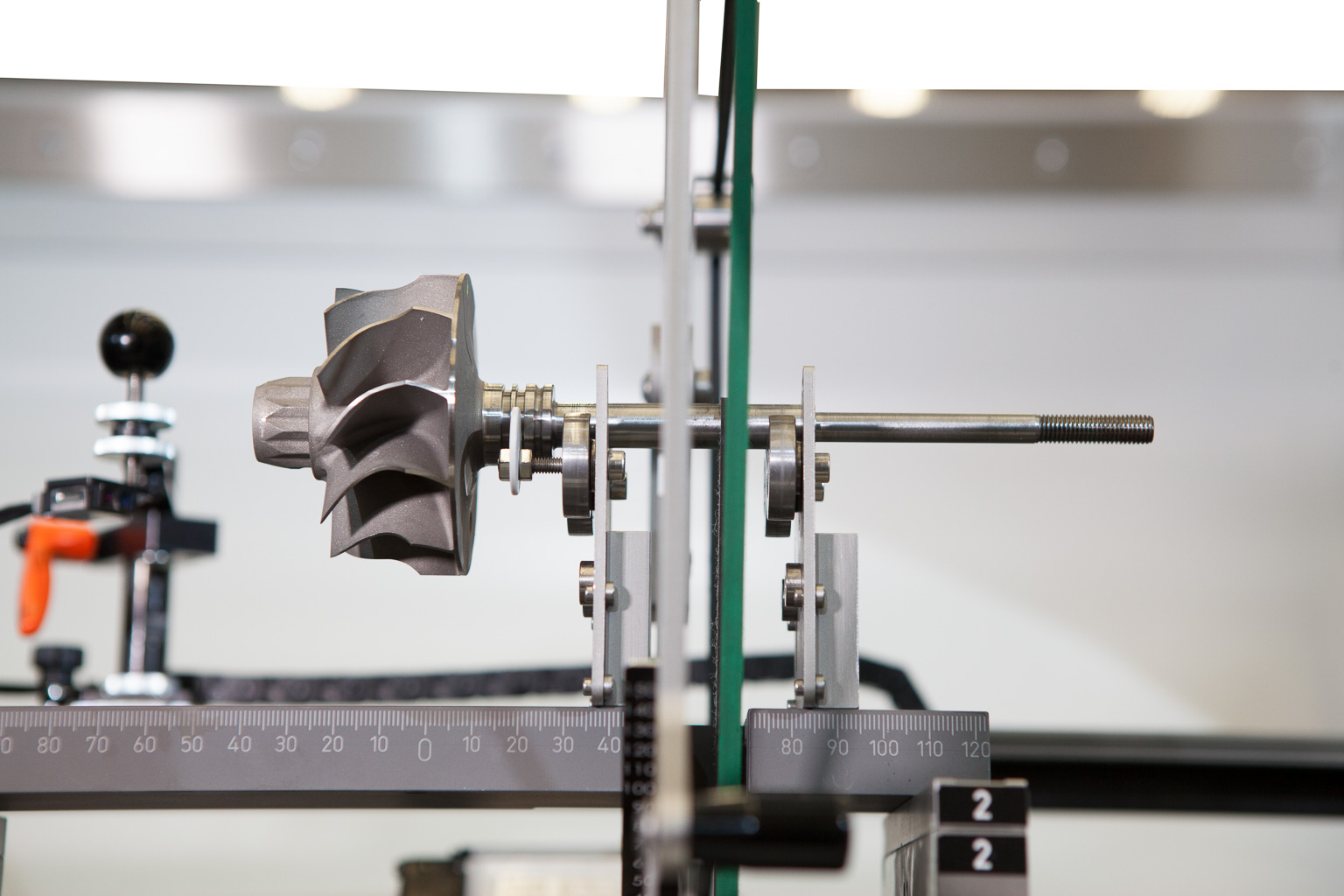

      Extension kit with balancing frame for small rotors, made out of amagentic material
Rotor    Roller inserts, made out of amagnetic material  Roller inserts  Prism inserts  Synthetic plain bearings
Weight, max.  [kg]  15
Weight per pedestal, max.    7,5  2,5  0,5  0.5
Diameter, max.  [mm]  305  120  120  120
Journal distance, max  [mm]  60 - 600  15 - 211  17 - 230  20 - 230
Journal diameter  [mm]  6 - 30  60-30; 30-70   2 - 22  3 - 22
Width 1)  [mm]  ca. 1560
Depth 1)  [mm]  ca. 915
Height 1)  [mm]  ca. 1670
Total weight  [kg]  ca. 700 kg
Power supply    230 V AC 50/60 Hz
Belt drive    Overslung belt drive
Drive power  [W]  200
Automatic angle indexing    included
Min. achievable residual unbalance Umar 1)  [gmm/kg]  0,1
2-colour painting     RAL 7035 (light grey), RAL 7024 (graphite grey)
Protection    in accordance with ISO 7475 Class C (protection against parts flying off)
Measuring devices    CAB 920 with touch-screen operation
Options    Tray for supporting arm
    Laser printer for report printouts
    Test rotor (500 g) with test weights
    Statistical Software
    Averaging over several runs
    Template based printer protocol
1) Min. achievable residual unbalance per plane
