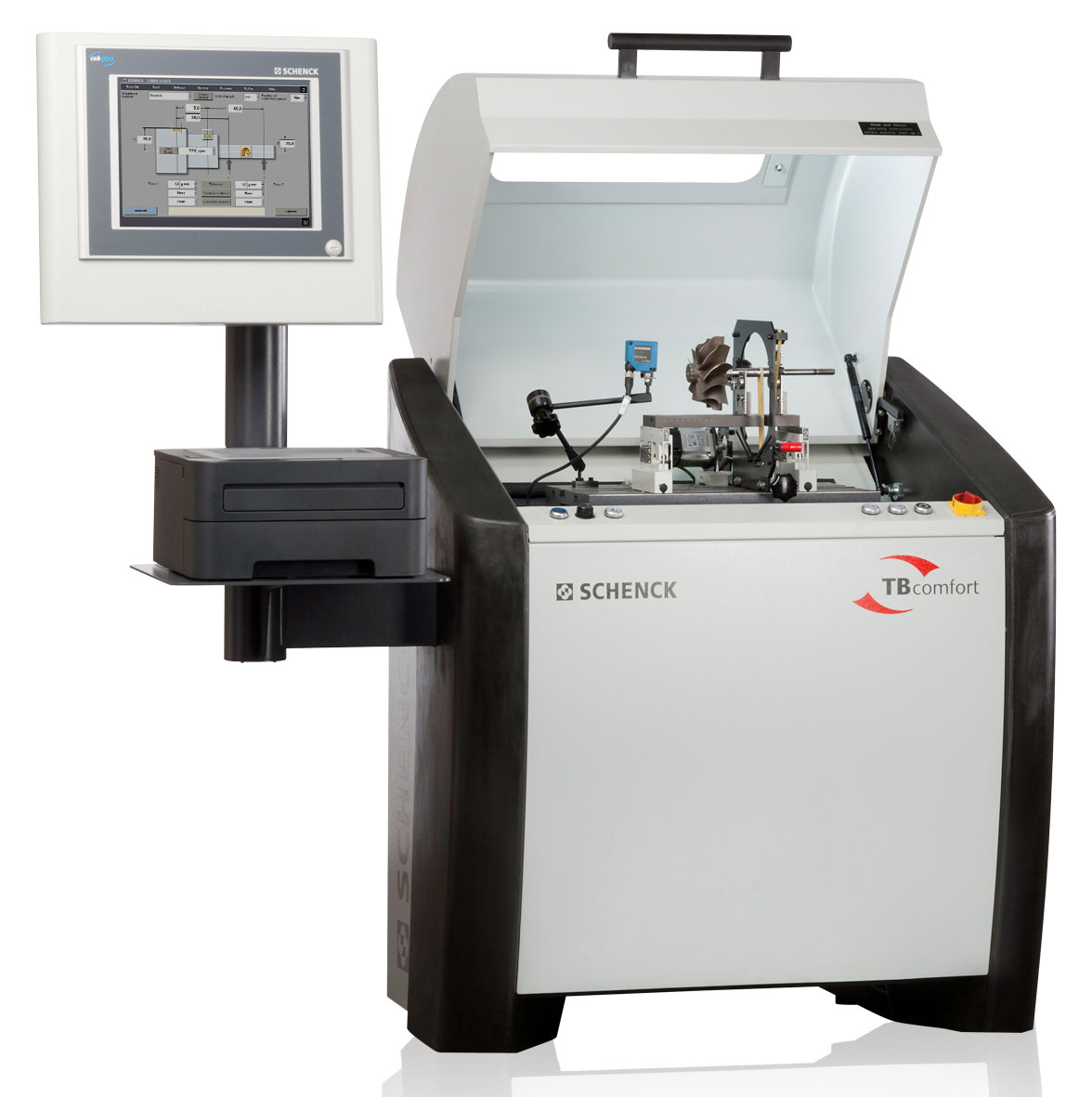

TBcomfort

Balancing Machine for Turbocharger Components

  • High measuring accuracy and efficiency
  • Safe and simple handling
  • Two plane balancing
  • Infinitely variable DC drive
  • Large size and weight range of rotors
  • Ergonomic working height
  • Industrial PC with touch screen measuring unit CAB 820 with easy and intuitive usage and optimized connectivity
  • Indexing aid
  • Safety enclosure type C60 in accordance with ISO 7475

Special features

  • Compact design with integrated measuring station and measuring instrument ensures low space requirements
  • Easy installation and relocation without a fixture in the shop floor
  • Simple to operate due to permanent calibration; no calibration runs required
  • Manual positioning to the calculated correction points, supported by a graphical indexing display
  • Workshop-proof and fanless industry PC
  • Unbalance correction in two planes, separated by  static / couple unbalance is possible
  • Automatic measuring cycle with infinitely variable values for run-up, measuring and braking time.
Design

Range of application

The TBcomfort has been designed especially for balancing with the highest precision reworked turbocharger components – turbine wheels with shaft and compressor wheels. The accessories required for balancing turbocharger rotors are included in the scope of supply and cover already a big range of size and weight.
The TBcomfort is equipped with the touch screen measuring unit CAB 820 and an electronic drive control system. The infinitely variable speed drive makes it easier to control the balancing speed. These features result in an improved balancing efficiency and accuracy: More work in the same time including the fulfillment of the highest expectations towards measuring accuracy.

Design

  • Hard-bearing, horizontal balancing machine with permanent calibration.
  • The entire workstation consists basically of the following main components: Solid machine housing, base frame with roller or prism supports, overslung belt-drive and control, touch screen measuring unit CAB 820.
Technical data
Data at a glance
Rotor:
Rotor weight  [kg]  max. 16
Rotor diameter  [mm]  max. 350
Bearing journal diameter  [mm]  6 - 30
Bearing centre spacing  [mm]  15 - 230
Smallest achievable residual unbalance  [gmm]  0,1
Machine data:
Size: Width, depth, height  [mm]   1483 x 730 x 1400
Overall weight   [kg]  700
Power supply  [V]   230 V ± 10%, 50 Hz
Rotor drive    folding clamp belt drive
Drive performance  [W]  200
Noise level  [dB]  less than 65 (measured with rotor)
Protective cover    To ISO 7475 Class C
Painting    2 colour: RAL7035 (light grey), RAL7024 (graphite grey))
Measuring unit    CAB 820
Options:    Measuring unit CAB 920SmartTouch
    Keyboard with shelf
    Printer with shelf for report printouts
    Support roller attachment for rotors up to 16kg and 350mm
