Pasio 15

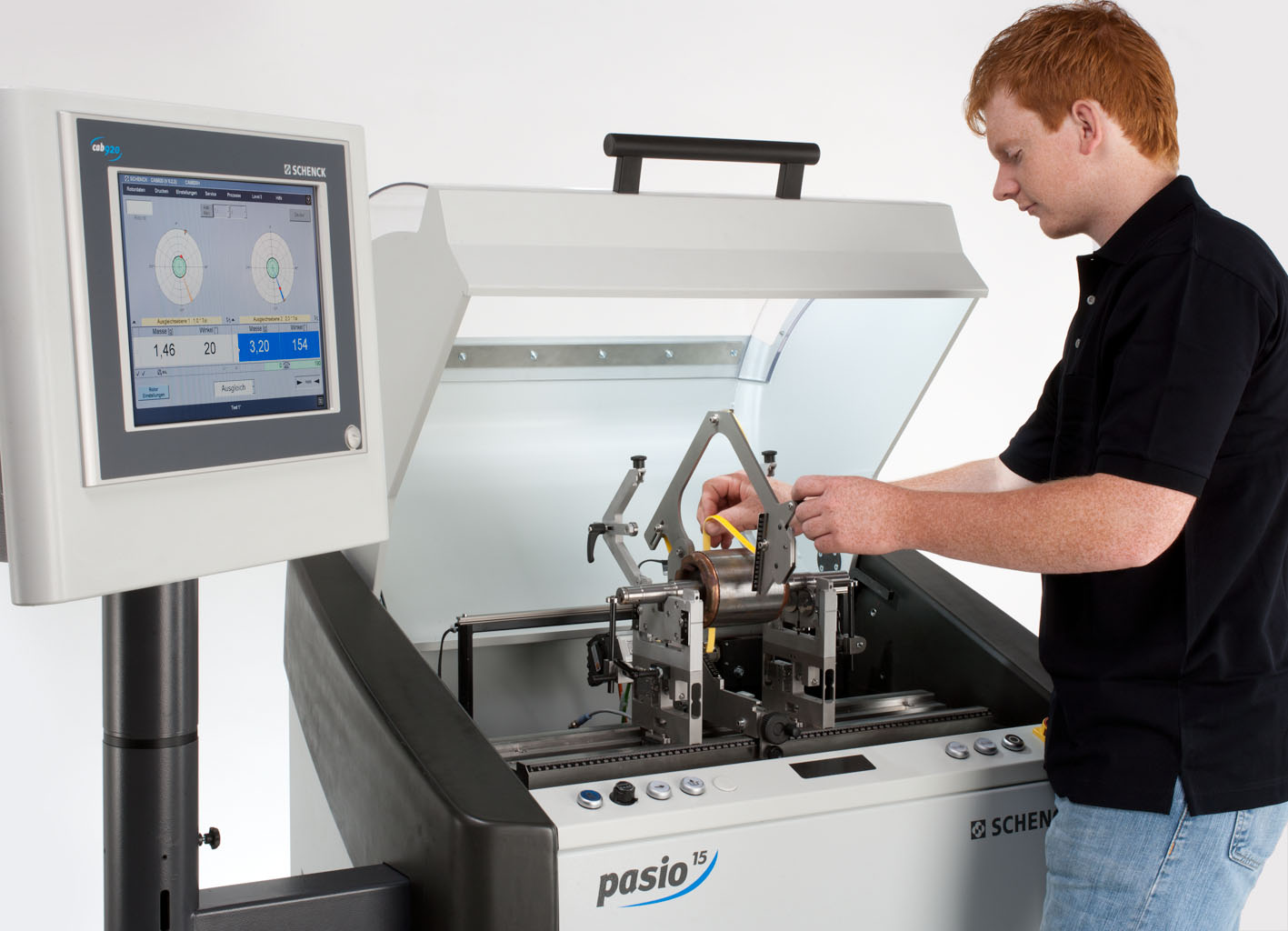

Universal balancing machine for rotors up to 15 kg

  • Compact design
  • Minimum space requirement
  • Fast and uncomplicated set up
  • Installation without foundations
  • Highest measuring accuracy
  • Ergonomic operator concept
  • Quick change-over from workpiece to the next
  • Suitable for magnetized rotors

Special features

  • Space-saving single-unit design with integral measuring station and measuring unit
  • Easy to operate through permanent calibration – requires no calibration runs
  • Correction in two planes or separate according to static and couple unbalance is possible
  • Rotors can be mounted on their original shafts or on mounting arbors, complete assemblies can be installed in their housing
  • Automatic measuring cycle with infinitely variable settings for acceleration, measuring and braking time.

Design

Range of application

Universal balancing machine Pasio 15 is ideally suited to small work-pieces such as electric armatures – also magnetised - fans and complete assemblies. They are conceived for use in batch production, research and development or in repair shops.

Change-over to new rotor types is straightforward and only requires a minimum of time.

Unbalance correction is made manually by addition of material (e.g. balancing plasticine) directly on the machine or by removal of material on optional manually operated or semi-automated machining units.

Design

  • Hard-bearing, horizontal balancing machine with permanent calibration
  • The complete workplace consists of the following major components: mineral concrete machine table with integrated controls, mechanical balancing unit comprising roller bearings, belt drive, safety enclosure and measuring instrument
  • The machine can be installed without foundations and without bolts and is immediately ready for operation
  • Measuring unit CAB 820 with with touch screen graphics display
  • Optional: Measuring device CAB 920 - the high end solution regarding operation, versatility and accuracy

Technical data
Data at a glance    Rollers

Rotor
Weight, max.  [kg]  15
Diameter, max.  [mm]  350
Journal distance, max  [mm]  600
Journal diameter  [mm]  6 - 30
Journal diameter optional  [mm]  30 - 70
Maschine

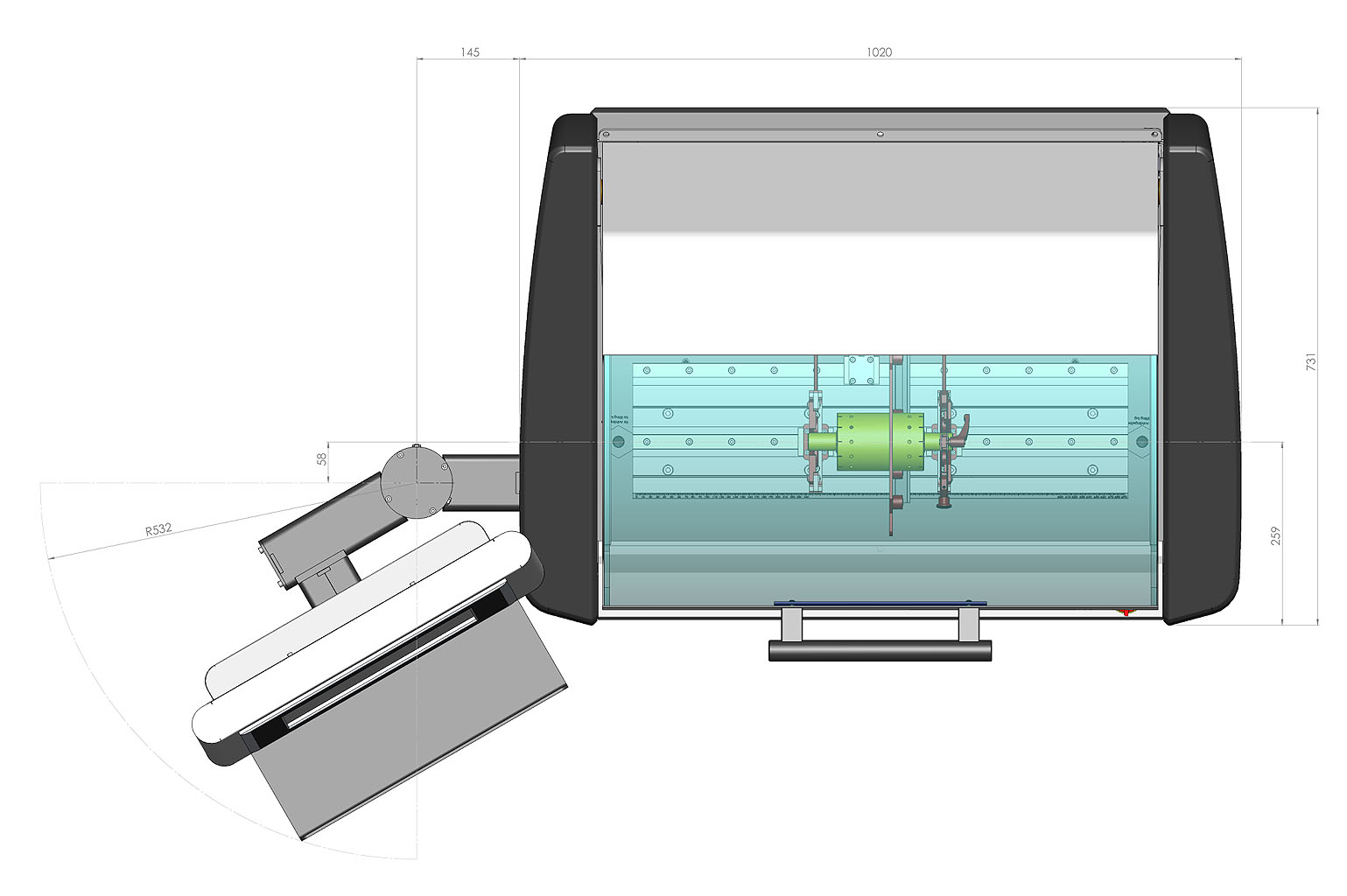

Width 1)  [mm]  1700
Depth 1)  [mm]  920
Height 1)  [mm]  1700
Total weight  [kg]  700
Power supply    230 V Wechselstrom, 50 Hz
Belt drive    Klappbügel-Bandantrieb
Drive power  [W]  200
Automatic angle indexing    enthalten
Min. achievable residual unbalance Umar 2)  [gmm/kg]  0,1
Max. sensitivity CAB 820 / 920  [gmm]  0.1
Protective enclosure    ISO 7475 Class C20 (protection against parts flying off)
2-colour painting     RAL 7035 (light grey), RAL 7024 (graphite grey)
Sound Pressure Level (with class C protection)  [LpA [dB(A)]]  < 60
Measuring devices
    CAB 820
    CAB 920 Smart Touch
Options
    Software options for CAB 820 and CAB 920
    Test rotor (1.6 kg) wtith test weights
    Color printer for report print-outs with accessories

2) Min. achievable residual unbalance per plane
