- Highly flexible working range from 14'' - 24"
- Optional, robot-based matching function that replaces a stand-alone match machine
- Optimal lubrication of the tire beads and the rims with brush and spray application
- Shortest cycle times with a two-station machine concept
- Ergonomic operation concept
- Improved accessibility through parallel rim and tire in-feed sections
- Installation does not required a dedicated foundations

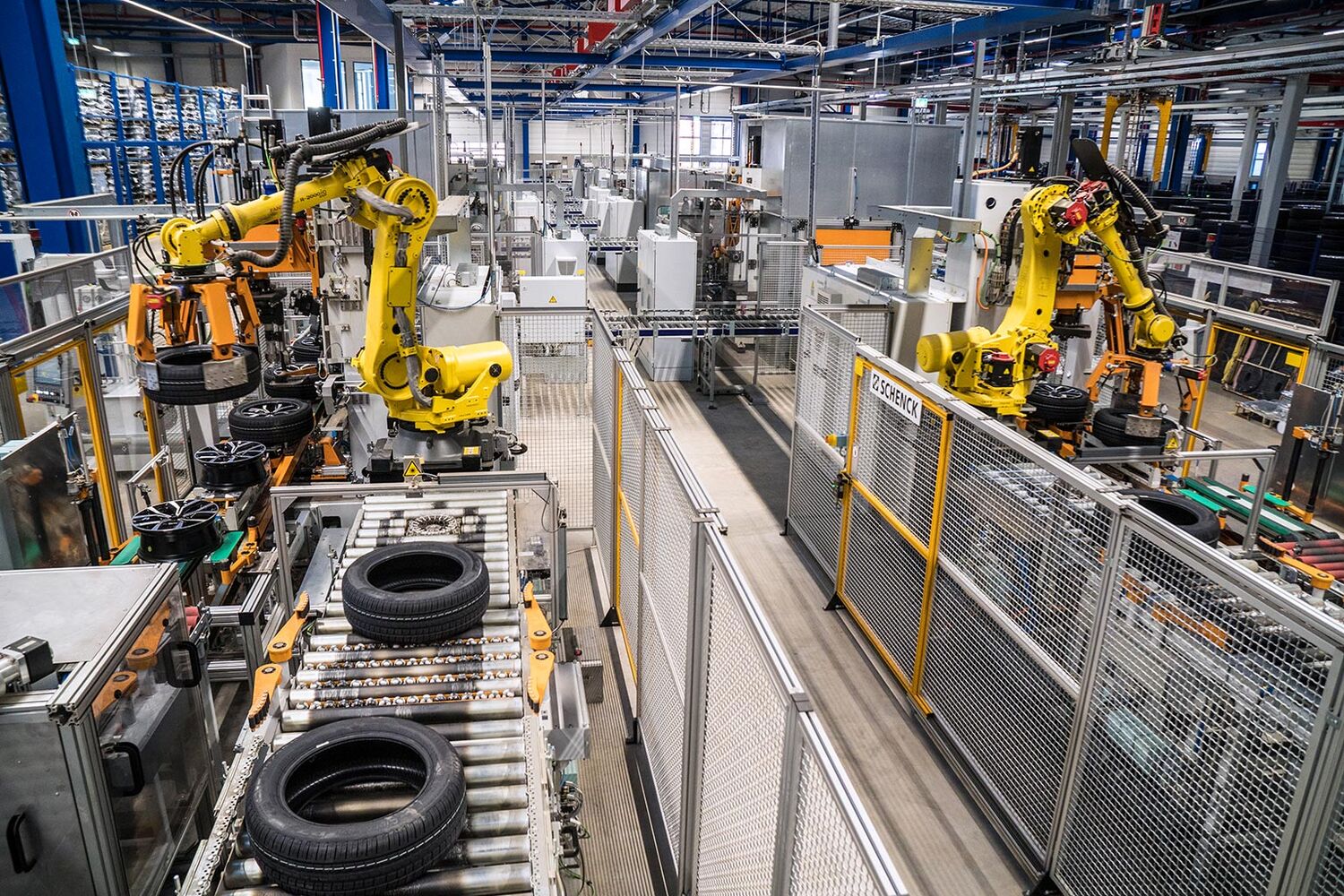

The high-end mounting machine 150TBUR provides maximum performance and flexibility for your tire and wheel production. The big working range of 14"-24" covers any production program with ease.
The patented robot-based, two-station machine concept allows for a sparing tire mounting procedure, while maintaining shortest cycle times even in a mixed mode operation. Additionally, the optional robot-based matching function reduces space requirements and investments significantly.
The 150TBUR is digital-ready, which enables an easy full-scale Loxeo integration. Loxeo offer various features for machine diagnosis in terms of performance and status monitoring.
Design
- Separate feed-in conveyors for rims and tires
- Optional camera stations in both the tire and rim feed-in, for the recognition of match-marks
- Spray lubrication for the rims
- Brush-based lubrication system for the upper and lower tire bead
- Robot-based mounting of the first bead with match-mark indexing for the matching function
- Mounting station for the mounting of the second bead
- Flexible production over the entire working range in a mixed operation mode
- Digital-ready machine design for a simple Loxeo integration
- Patented robot-based match functionality ensure significant cost and space savings
- Sparing two station mounting concept with robot-assisted mounting of the first tire bead
- The two station mounting concept enables the machine to realize shortest cycle times while preventing tire stress
- High-precise camera recognition of the match-marks with two camera stations in the rim and tire feed-in
Data at a glance | ||||
Operating range | ||||
Wheel weight max. | [kg] | 50 | ||
Wheel outer diamater | [mm] | 560-900 | ||
Wheel width | [mm] | 100-350 | ||
Rim diameter | [inch] | 15-24 | ||
Rim width | [inch] | 3-13 | ||
Rim offset | [mm] | 0 - 120 | ||
Rim material | Steel, Alloy | |||
Number of processable mounting programs | 9999 | |||
Machine | ||||
Width | [mm] | 5600 | ||
Depth | [mm] | 6400 | ||
Height | [mm] | 3500 | ||
Feed-in height rims | [mm] | 1110 | ||
Feed-in height tyres | [mm] | 1250 | ||
discharge height wheel | [mm] | 1110 | ||
Total net weight | [kg] | 9500 | ||
Power supply | 400V 3-Ph, 50Hz | |||
Total connected load | [kVA] | 25 | ||
SPS type | Siemens F1500 TIA | |||
Compressed air consumption max. | [m³ i.N. pro h] | 60 | ||
Compressed air supply pressure | [bar] | ⥠6 | ||
Noise level | [dB(A)] | ⤠80 | ||
Machine color | RAL 7035 (SCHENCK-Standard) | |||
Cycle time | ||||
both beads simultaneously | [s] | 7 | ||
single bead | [s] | 7 | ||
run-Flat | [s] | 8.5 | ||
single bead without robot | [s] | 10 |
